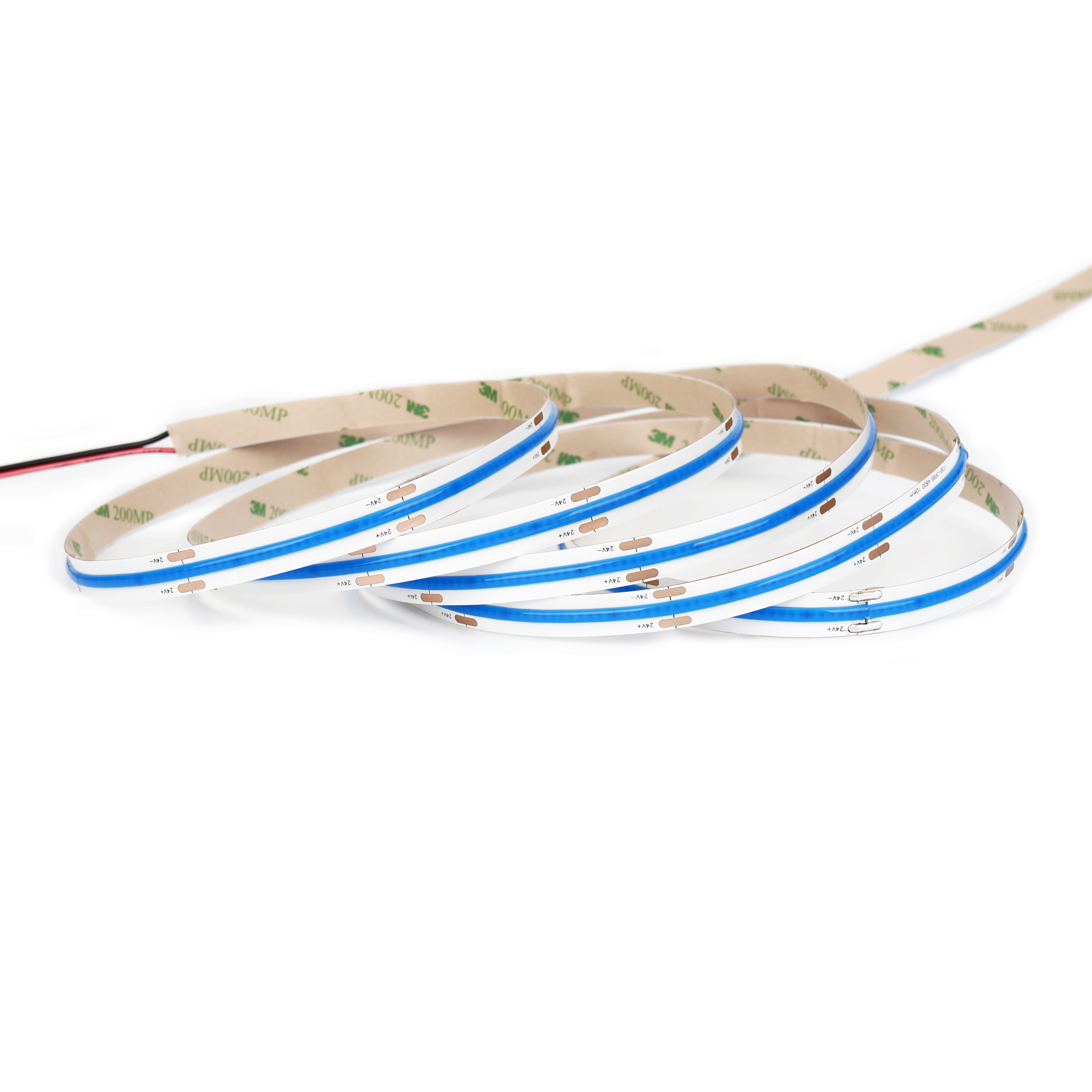

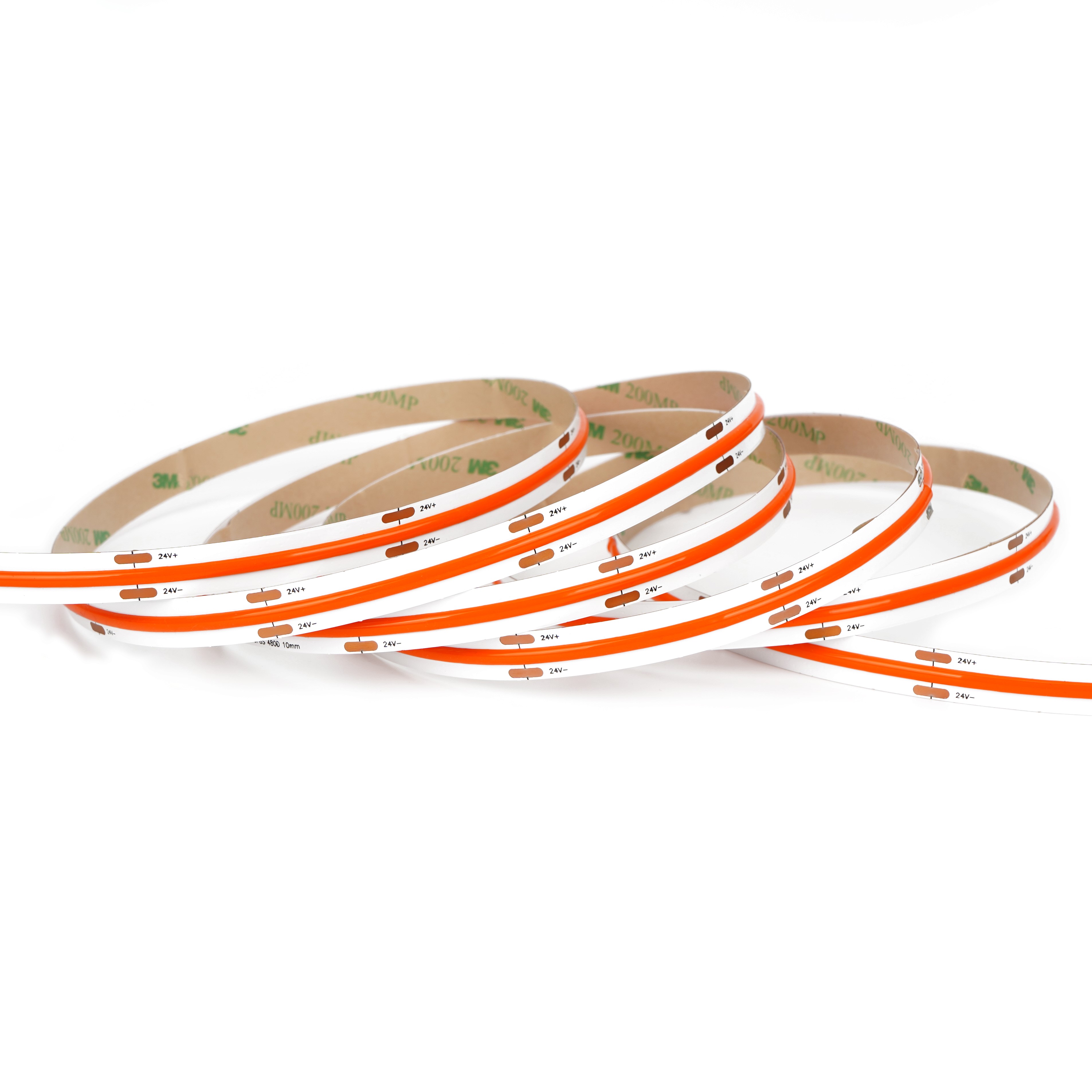

480leds/m - COB480-24V-10mm R/G/B 12W/m
Feature / Warranty:
◆ No light spot.
◆ High lumen output, 100-120lm/W.
◆ High CRI: RA>90.
◆ One BIN LED selection to ensure color consistency.
◆ CE/ROHS certification.
◆ Warranty: 3 years.
Specification:
| Model No. | CH-COBX480-5M20-2410 (X=R/G/B/Y/A) | ||
|---|---|---|---|
| Step length (mm/x LED) | 50mm/24LEDs | ||
| Number LED/m | 480leds/m | ||
| Voltage (v) | 24V | ||
| Color | Red / Green / Blue | ||
| Beam Angle(º) | 180º | ||
| Power (w/m) | 12W/m | ||
| FPC width (mm) | 10mm | ||
| Max. length per circuit (m) | 5m | ||
| IP rate | 20/65/66/67 | ||
| Package | 5Mts/Reel, Anti-Static Bag + Carton | ||
| Installation | 3M Tape / Mounting Clips / Aluminum Profiles | ||
