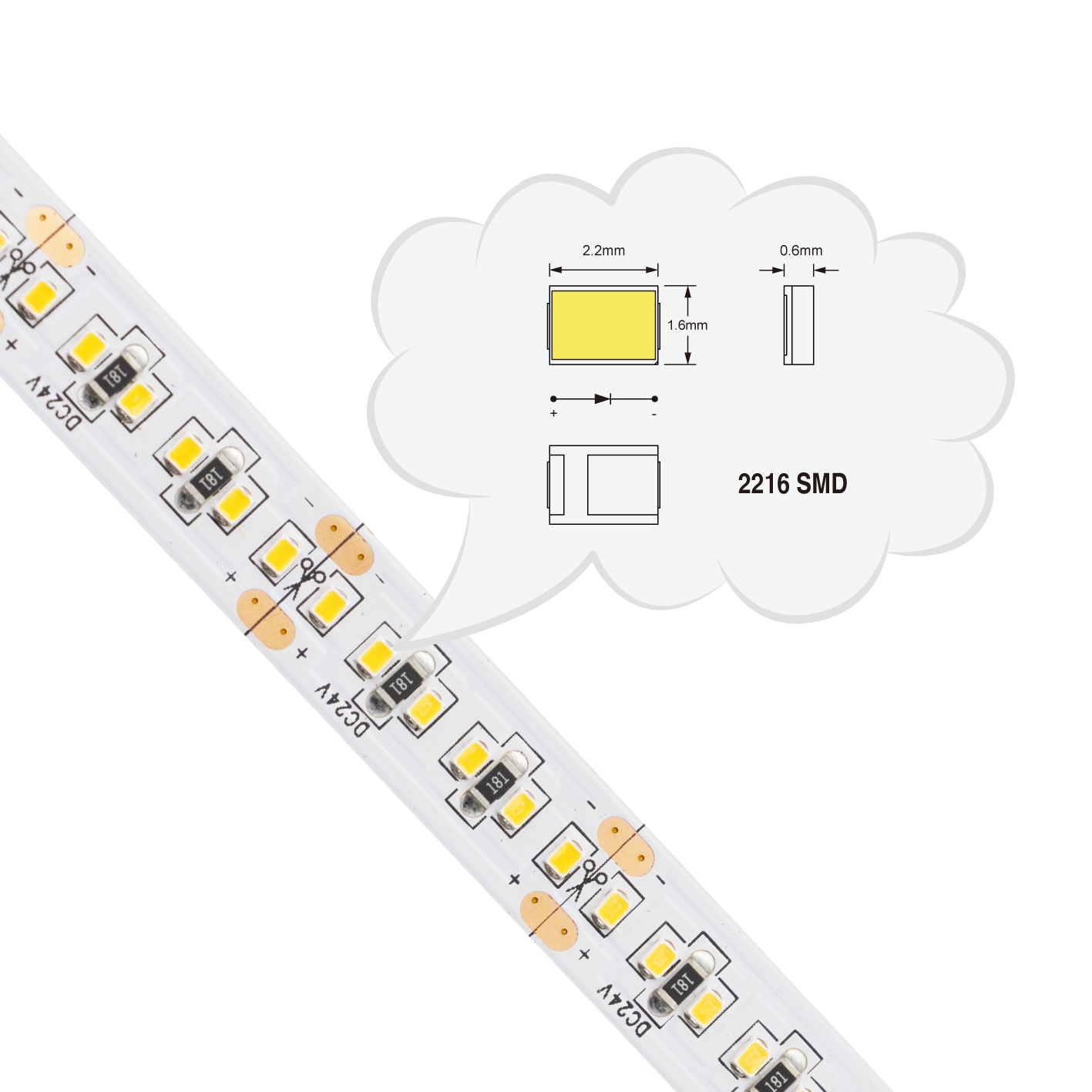

SMD2216 - 240leds/m-10mm-5M
Feature / Warranty:
◆ Ra90/Ra95 available.
◆ One BIN LED selection to ensure color consistency.
◆ CE/ROHS certification.
◆ Warranty: 3 years.
IP rate:
Specification:
| Model No. | CH-2216W240-5M20-1210 | CH-2216W240-5M20-2410 | |
|---|---|---|---|
| Step length (mm/x LED) | 12.5mm/3LEDs | 25mm/6LEDs | |
| Number LED/m | 240leds/m | 240leds/m | |
| Voltage (v) | 12V | 24V | |
| Ra | 90 / 95 | 90 / 95 | |
| Beam Angle(º) | 120 | 120 | |
| Power (w/m) | 16W/m | 16W/m | |
| Light output (lm/m) | 1125lm/m | 1125lm/m | |
| FPC width (mm) | 10mm | 10mm | |
| Max. length per circuit (m) | 5m | 5m | |
| IP rate | 20/65/66/67/68 | 20/65/66/67/68 | |
| Package | 5Mts/Reel, Anti-Static Bag + Carton | ||
| Installation | 3M Tape / Mounting Clips / Aluminum Profiles | ||
