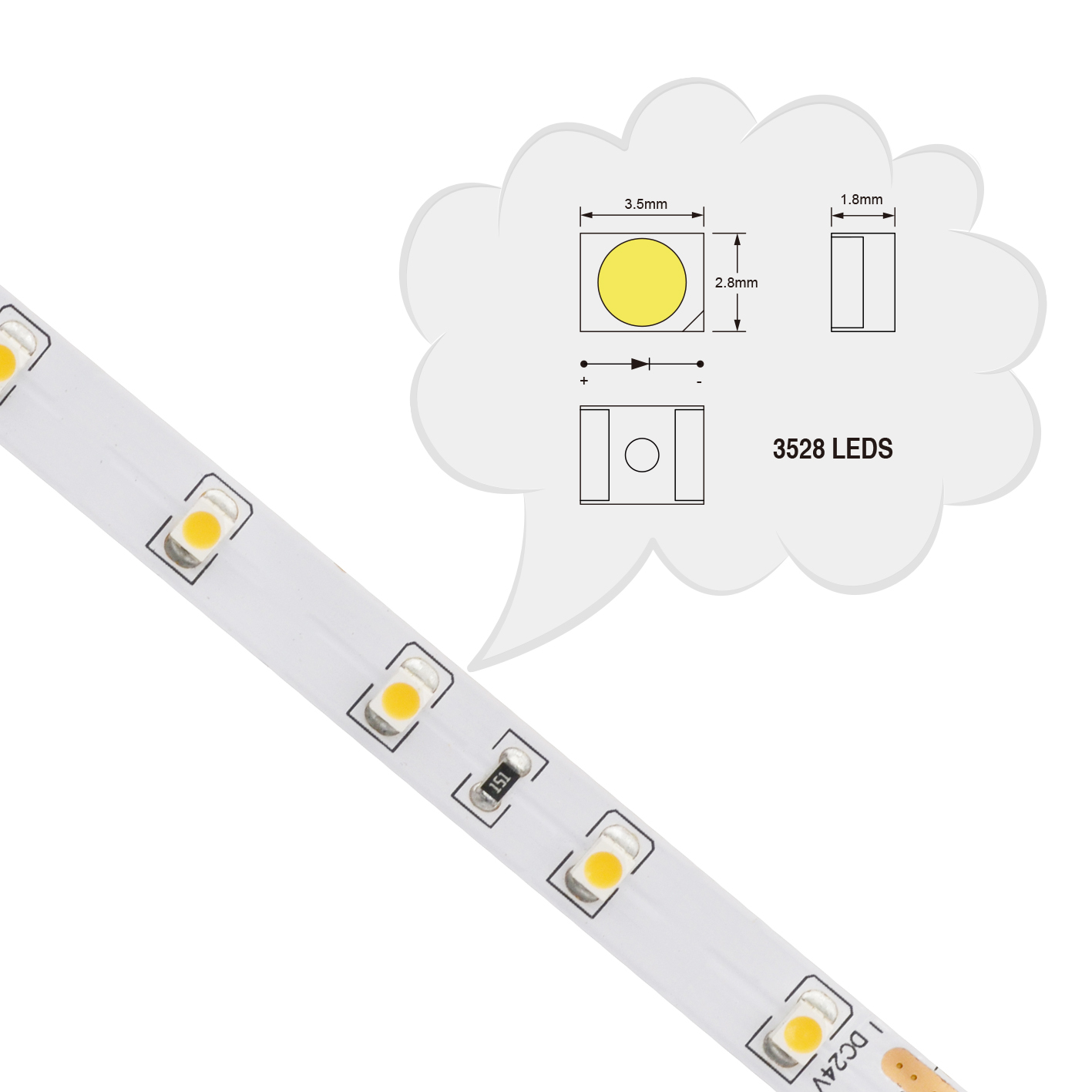

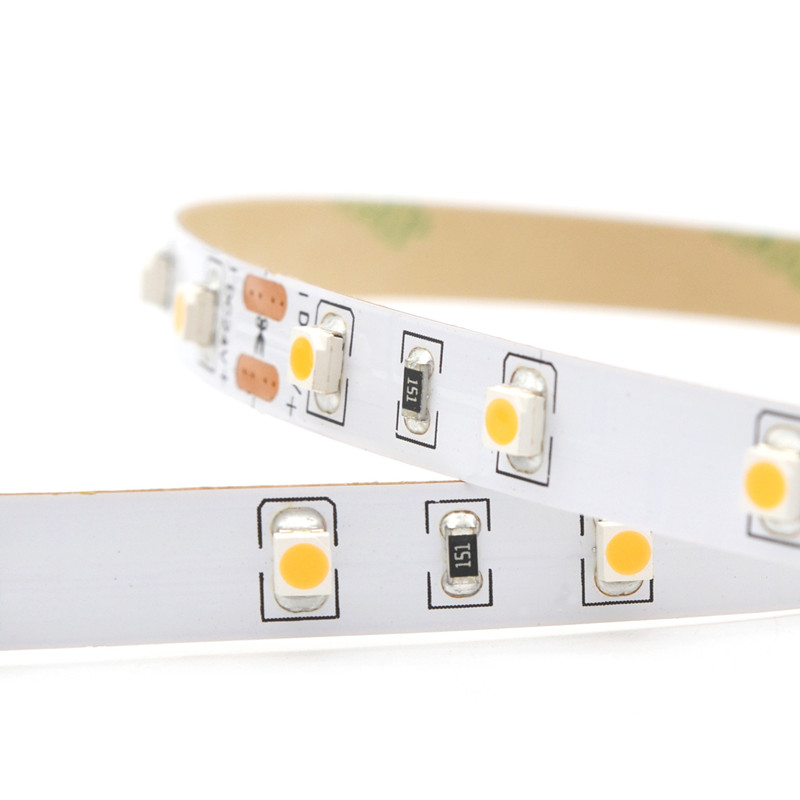

SMD3525 - 60leds/m-8mm
Feature / Warranty:
◆ Ra80/Ra90 available.
◆ One BIN LED selection to ensure color consistency.
◆ CE/ROHS certification.
◆ Warranty: 3 years.
IP rate:
Specification:
| Model No. | CH-3528W60-5M20-1208 | CH-3528W60-5M20-2408 | |
|---|---|---|---|
| Step length (mm/x LED) | 50mm/3LEDs | 100mm/6LEDs | |
| Number LED/m | 60leds/m | 60leds/m | |
| Voltage (v) | 12V | 24V | |
| Ra | 80 / 90 | 80 / 90 | |
| Beam Angle(º) | 120 | 120 | |
| Power (w/m) | 3.8W/m | 3.8W/m | |
| Light output (lm/m) | 335lm/m | 335lm/m | |
| FPC width (mm) | 8mm | 8mm | |
| Max. length per circuit (m) | 5m | 5m | |
| IP rate | 20/65/66/67/68 | 20/65/66/67/68 | |
| Package | 5Mts/Reel, Anti-Static Bag + Carton | ||
| Installation | 3M Tape / Mounting Clips / Aluminum Profiles | ||
