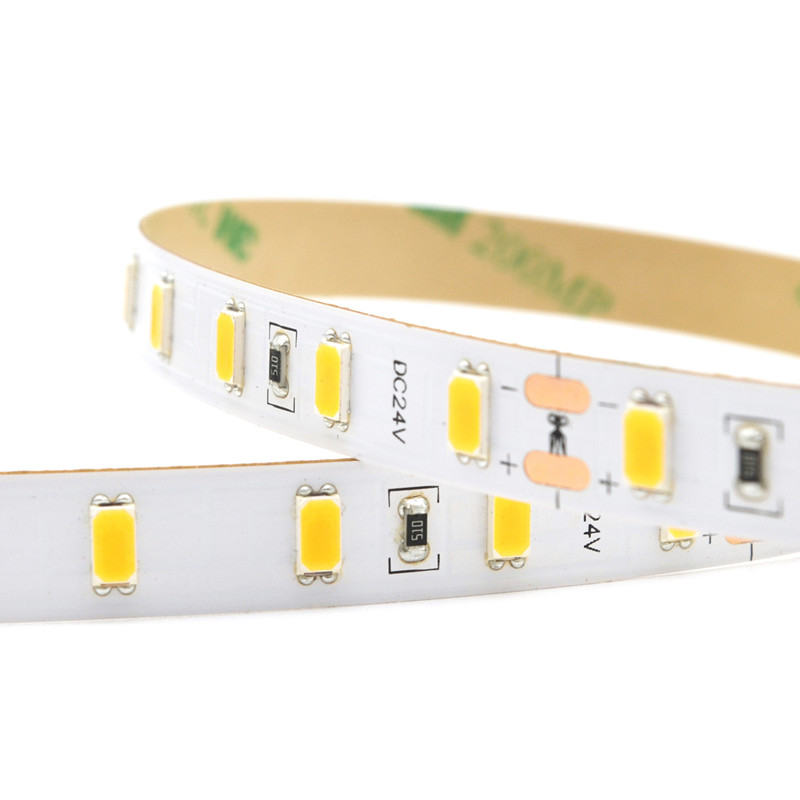

SMD5730 - 72leds/m-11mm-2.5M
Feature / Warranty:
◆ Use 0.5W super bright SMD5730 led chips, the strip can reach to 1932lm/m.
◆ Use double side FPC & 3OZ rolled copper design to reduce the voltage drop.
◆ One BIN LED selection to ensure color consistency.
◆ CE/ROHS certification.
◆ Warranty: 3 years.
IP rate:
Specification:
| Model No. | CH-5730W72-5M20-1211 | CH-5730W72-5M20-2411 | |
|---|---|---|---|
| Step length (mm/x LED) | 41.7mm/3LEDs | 83.3mm/6LEDs | |
| Number LED/m | 72leds/m | 72leds/m | |
| Voltage (v) | 12V | 24V | |
| Ra | 80 / 90 | 80 / 90 | |
| Beam Angle(º) | 120 | 120 | |
| Power (w/m) | 21W/m | 21W/m | |
| Light output (lm/m) | 1930lm/m | 1930lm/m | |
| FPC width (mm) | 11mm | 11mm | |
| Max. length per circuit (m) | 2.5m | 2.5m | |
| IP rate | 20 | 20 | |
| Package | 2.5Mts/Reel, Anti-Static Bag + Carton | ||
| Installation | 3M Tape / Mounting Clips / Aluminum Profiles | ||
